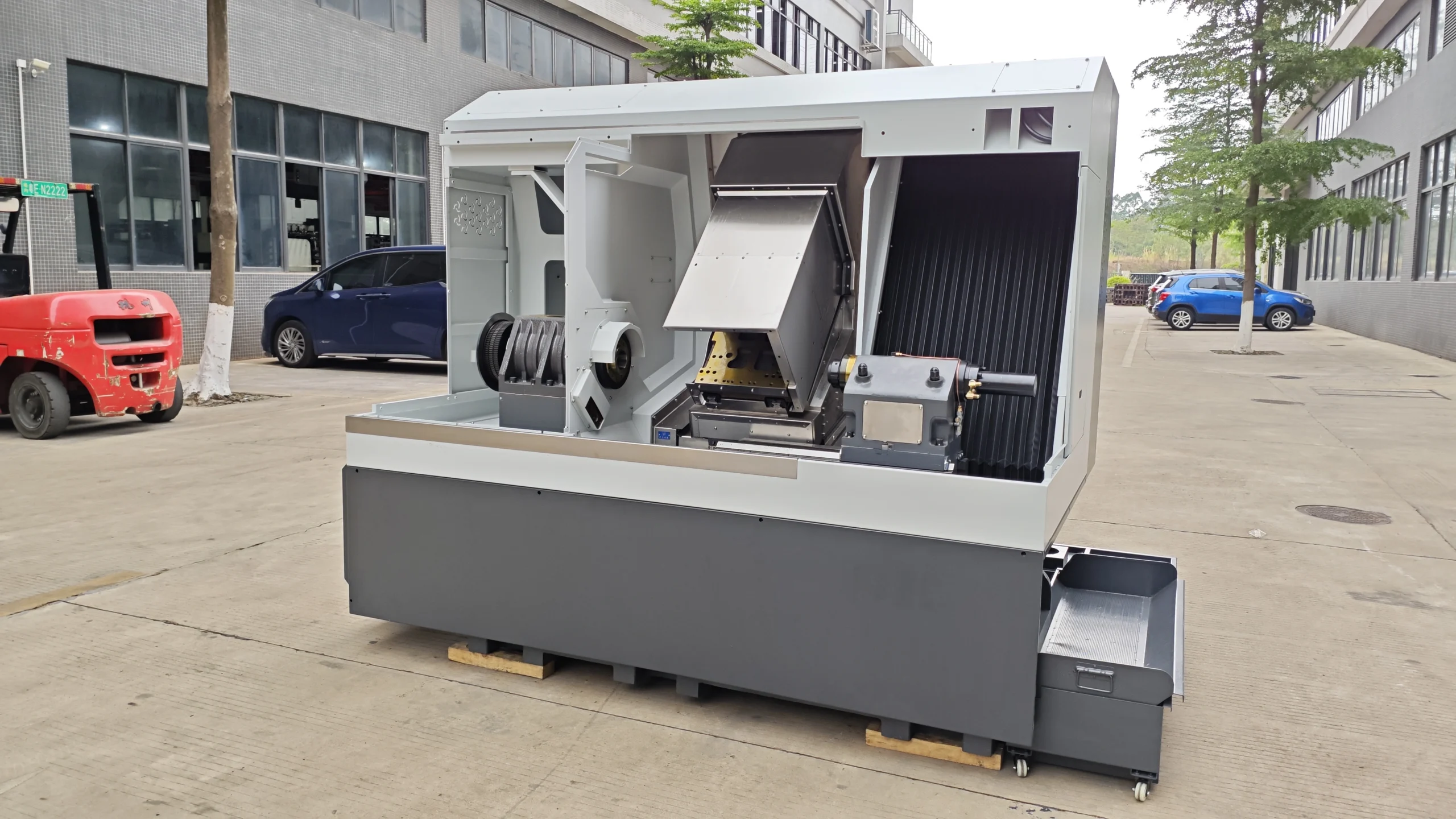

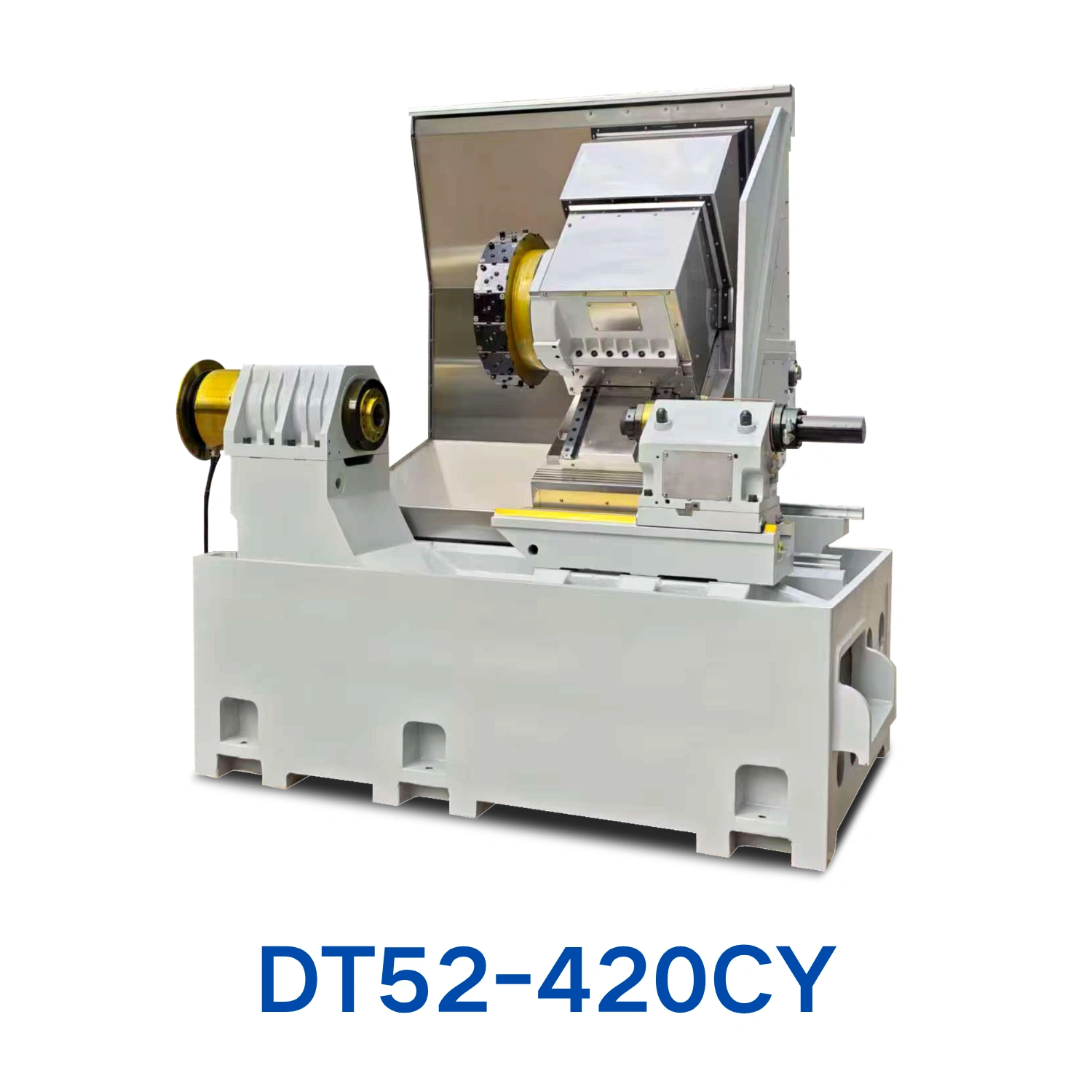

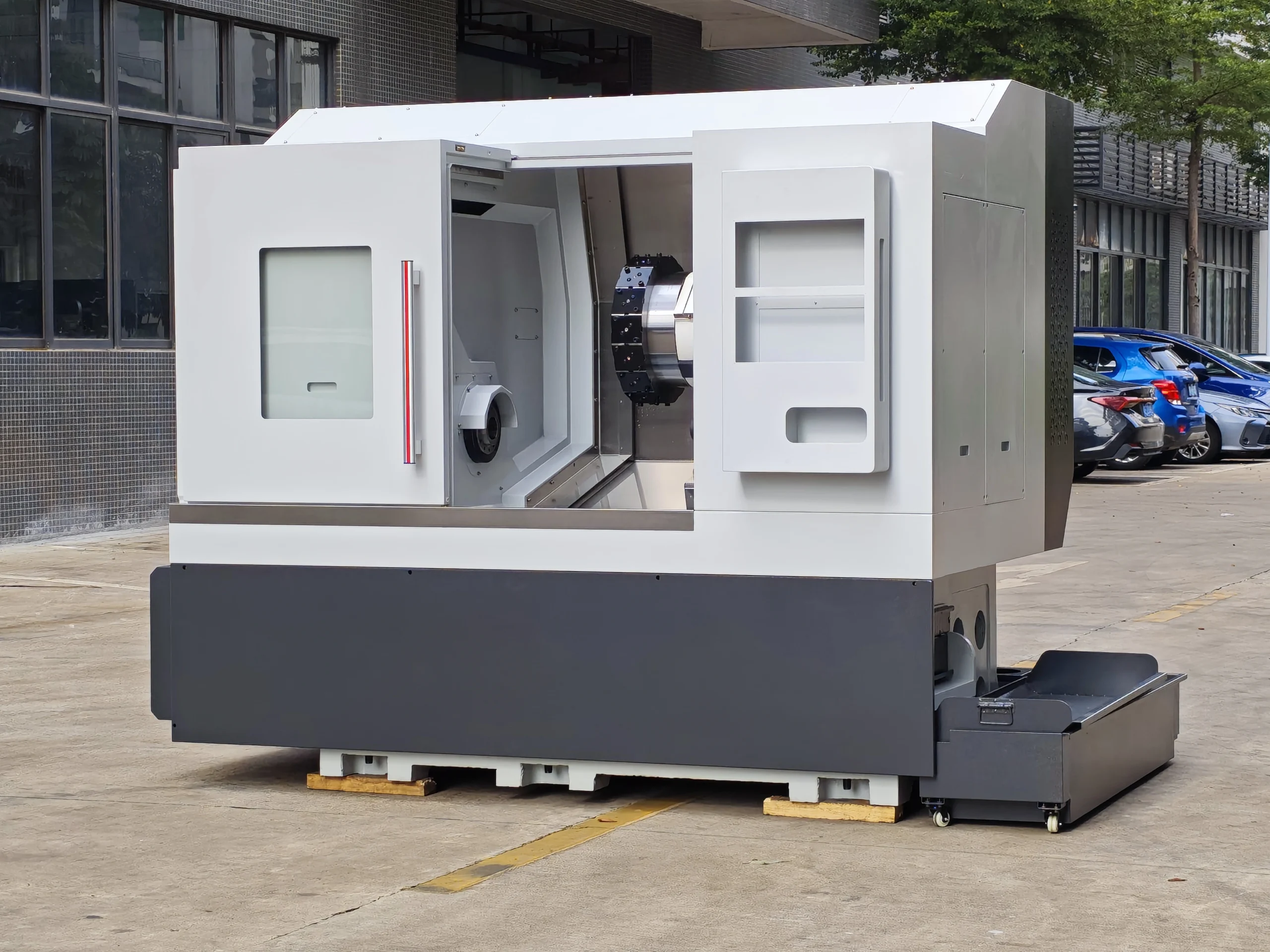

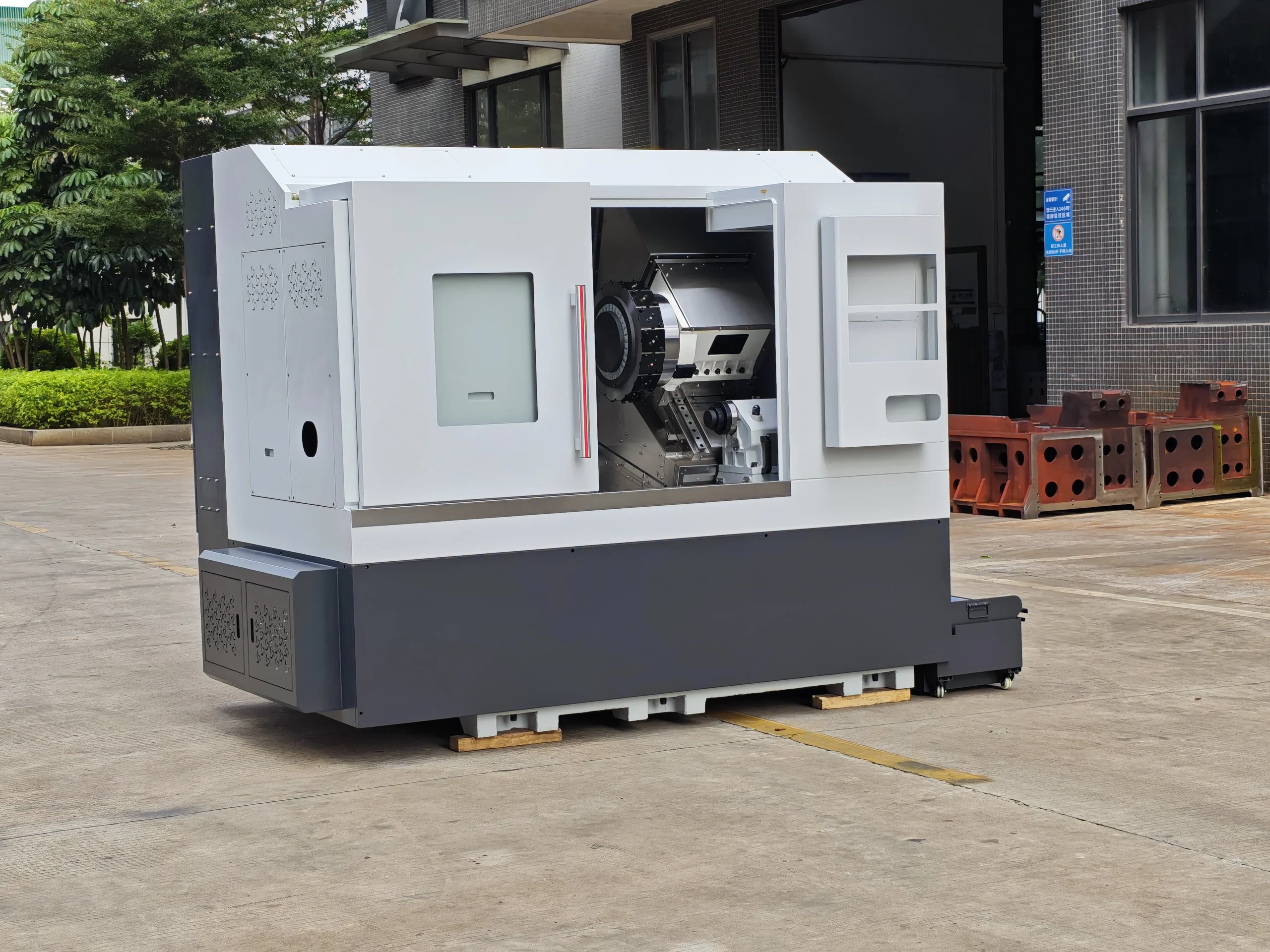

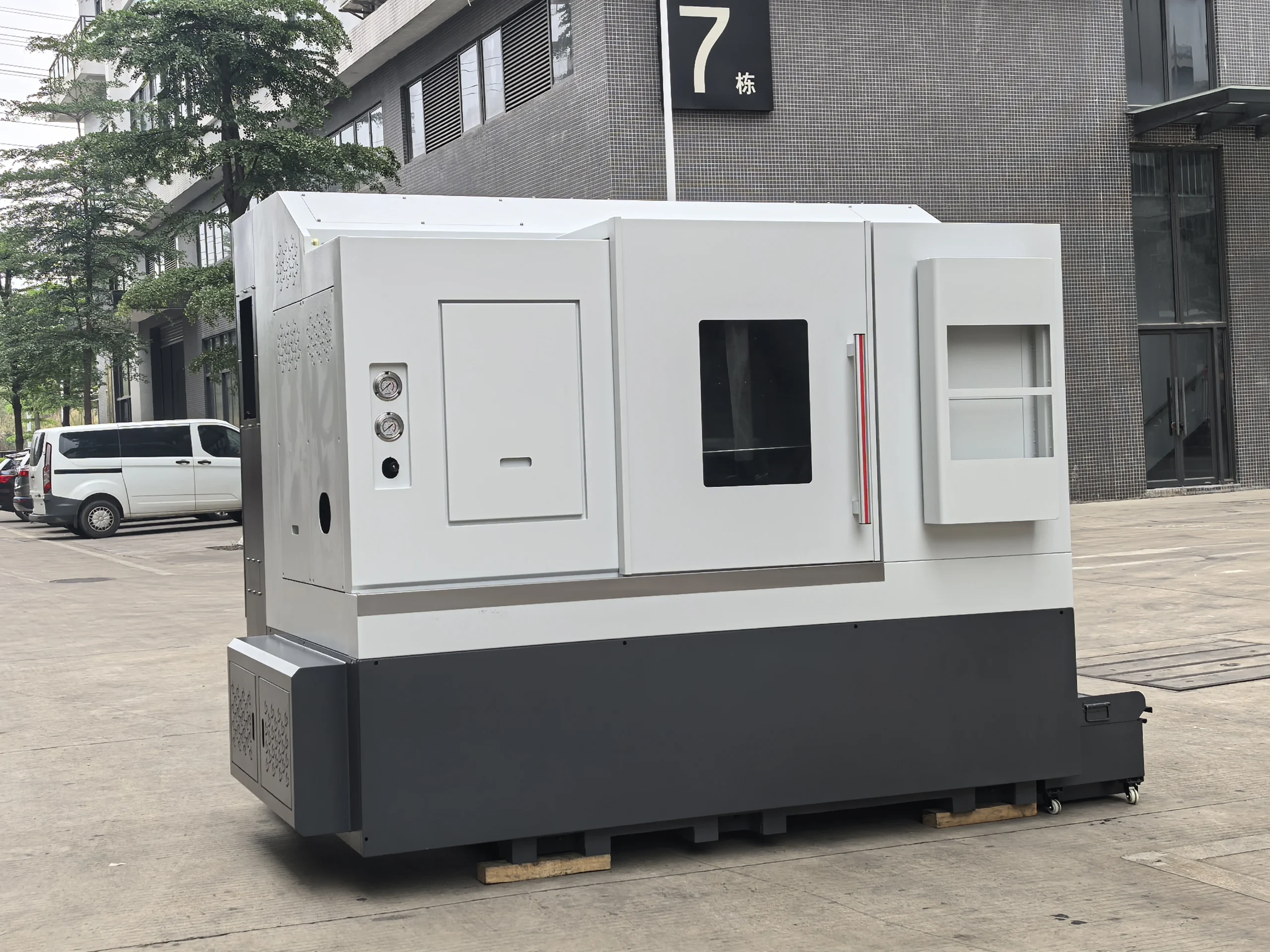

01 · Product overview
The DWSCNC DT52-420CY is designed for buyers who need a compact turn-mill platform with Y-axis capability. It supports process consolidation for smaller turned parts, helping reduce handling between machines.
02 Key advantages
- Interpolated Y-axis for milling and drilling features
- Integrated stepped bed structure
- Tailstock-ready configuration for stable machining
- Side-mounted chip conveyor layout
03 Technical specifications
| Turning diameter | 270 mm disk type / 270 mm shaft type |
|---|---|
| Turning length | 448 mm |
| Bed structure | Integrated 15-degree step bed with 30-degree interpolated Y-axis |
| Spindle nose | A2-5 / A2-6 / A2-8 options |
| Chip conveyor | Side mounted |
